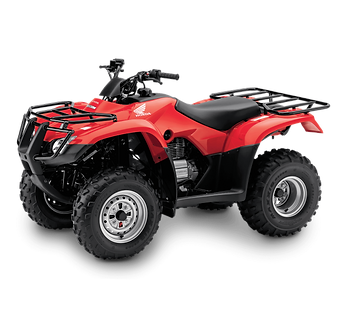

TRX250TM
Specifications
Engine
Engine Type Longitudinally mounted air-cooled OHV single-cylinder four-stroke
Engine Displacement 229 cc
Bore and Stroke 68.5mm x 62.2mm
Ignition CDI with electronic advance
Fuel System Carburetor - 22mm
Transmission
Starter Electric with auxiliary recoil
Transmission TypeManual 5-speed with reverse
Wheels, Suspension, Steering & Brakes
Suspension Front Independent double-wishbone
Front Wheel Travel 130 mm
Suspension Rear Solid axle swingarm with single shock
Rear Wheel Travel 125 mm
Brakes Front Dual sealed hydraulic drum
Brakes Rear Single sealed mechanical drum
Tyres Size Front 22 x 7 - 11
Tyres Size Rear 22 x 10 - 9
Dimensions & Height
Wheelbase 1130 mm
Ground Clearance 150 mm
Seat Height 793 mm
Kerb Weight 199 kg
Fuel Capacity 9.1 litres (Including 2.6 litre reserve)
Length 1905 mm
Width 1035 mm
Height 1070 mm
Towing Capacity 225 kg
Carrier Capactiy 15 kg
TRX420FM2
Specifications
Engine
Engine Type Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement 420 cc
Bore and Stroke 86.5mm x 71.5mm
IgnitionFull-transistorised with electronic advance
Fuel System Programmed fuel injection (PGM-FI) - 34mm throttle body
Cylinders1
Starter Electric with auxiliary recoil
Final Drive Direct front and rear driveshafts with torque sensing front differential
Transmission Type Manual 5-speed with reverse
Wheels, Suspension, Steering & Brakes
Suspension Front Independent double-wishbone
Front Wheel Travel 170 mm
Suspension Rear Solid axle swingarm with single shock
Rear Wheel Travel 170 mm
Brakes Front Dual hydraulic 190mm discs
Brakes Rear Single sealed 160mm mechanical drum
Tyres Size Front 24 x 8 - 12
Tyres Size Rear 24 x 10 - 11
Wheelbase 1269 mm
Ground Clearance 181 mm
Seat Height 854 mm
Kerb Weight 286 kg
Fuel Capacity 14.7 litres (Including 4.9 litres reserve)
Length 2104 mm
Width 1205 mm
Height 1174 mm
Towing Capacity 385 kg
Carrier Capactiy 30 kg
Specifications
Engine
Engine Type Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement 518 cc
Bore and Stroke 96.0mm x 71.5mm
Compression Ratio 9.5:1
Ignition Full-transistorised with electronic advance
Fuel System Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders1
Starter Electric with auxiliary recoil
Final Drive Direct front and rear driveshafts with TraxLok® and locking front differential
Transmission Type Manual 5-speed with reverse
Wheels, Suspension, Steering & Brakes
Suspension Front Independent double wishbone
Front Wheel Travel 185 mm
Suspension Rear Independent dual-arm
Rear Wheel Travel 215 mm
Brakes Front Dual hydraulic 190mm discs
Brakes Rear Single hydraulic 170mm disc
Tyres Size Front 25 x 8 - 12
Tyres Size Rear 25 x 10 - 12
Dimensions & Height
Wheelbase 1294 mm
Ground Clearance 250 mm
Seat Height 924 mm
Kerb Weight 318.01 kg
Fuel Capacity 14.7 litres (Including 4.9 litres reserve)
Length 2185 mm
Width 1205 mm
Height 1238 mm
Towing Capacity 600 kg
Front Carrier Capacity 45 kg
Rear Carrier Capacity 85 kg
Specifications
Engine
Engine Type Longitudinally mounted liquid-cooled single-cylinder four-stroke
Engine Displacement 675 cc
Bore and Stroke 102mm x 82.6mm
Compression Ratio 9.2:1
Ignition Full transistorised with electronic advance
Fuel SystemElectronic fuel injection (PGM-FI) - 40mm throttle body
Cylinders1
Valves4
Transmission
Starter Electric with auxiliary recoil
Final Drive Direct front and rear drive shafts with Traxlok® and locking front differential
Transmission Type Automatic with hydraulic torque converter, 3-speed with reverse and electronic control
Wheels, Suspension, Steering & Brakes
Suspension Front Independent double-wishbone
Front Wheel Travel 175 mm
Suspension Rear Independent dual-arm
Rear Wheel Travel 203 mm
Brakes FrontDual hydraulic 180mm discs
Brakes Rear Single hydraulic 170mm disc
Tyres Size Front26 x 8 - 12
Tyres Size Rear26 x 10 - 12
Dimensions & Height
Wheelbase 1286 mm
Ground Clearance 241 mm
Seat Height 884 mm
Kerb Weight 318 kg (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity 16.6 litres (Including 4.5 litre reserve)
Length 2197 mm
Width 1206 mm
Height 1219 mm
Towing Capacity 385 kg
Carrier Capactiy 45 kg
Instruments & Electronics
Headlight LED
HeadlightLED
