LT-A750XP
Specifications
Engine Type4-stroke, liquid-cooled, DOHC
Engine Displacement (CC)722
Bore x Stroke 104.0 mm x 85.0 mm
Transmission Automatic
Fuel SystemFuel Injection
Starter System Electric
Overall Length (mm) 2190
Overall Width (mm) 1275
Overall Height (mm) 1285
Wheelbase (mm) 1285
Ground Clearance (mm) 260
Seat Height (mm) 920
Curb Mass (kg) 331
Suspension - Front Independent, double wishbone, coil spring, oil damped
Suspension - Rear Independent, double wishbone, coil spring, oil damped
Brakes - Front Disc brake, twin
Brakes - Rear Sealed oil-bathed multi-disc
Tyre - Front AT25 × 8-12**, tubeless
Tyre - Rear AT25 × 10-12**, tubeless
Fuel Tank Capacity (L) 17.5

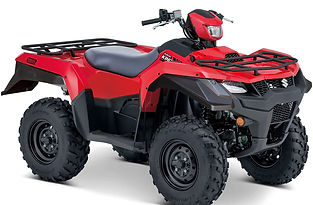

LT-A500XP

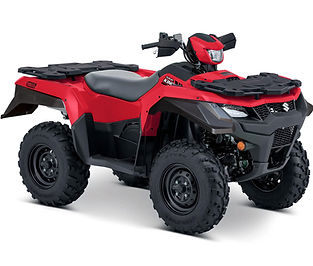

LT-A500X
Features
UTILITY / CHASSIS
-
Towing capacity up to 600kg
-
Trailer hitch mount has changed to a square-receiver type
-
Multi-function instrument panel with service reminder icon
-
Expansive storage compartments including a front waterproof storage and two rear storage compartments
-
Handlebar-mounted headlight
-
Flush-mount, LED-style taillight
-
A range of Genuine Suzuki Accessories
PERFORMANCE
-
Dual front hydraulic disc brakes with 190mm rotors
-
Sealed, oil-bath multidisc rear brake with 106mm discs
COMFORT
-
Rear stabiliser system
-
Fully independent suspension system
-
Long suspension travel
-
Front wheel travel 172mm
-
Rear wheel travel 194mm
LT-F400F
Features
UTILITY / CHASSIS
-
Towing capacity up to 600kg
-
Trailer hitch mount has changed to a square-receiver type
-
Multi-function instrument panel with service reminder icon
-
Expansive storage compartments including a front waterproof storage and two rear storage compartments
-
Handlebar-mounted headlight
-
Flush-mount, LED-style taillight
-
A range of Genuine Suzuki Accessories
-
Front and rear carrier covers
PERFORMANCE
-
Dual front hydraulic disc brakes with 190mm rotors
-
Sealed, oil-bath multidisc rear brake with 106mm discs
COMFORT
-
Power steering
-
Knuckle covers as standard equipment to help protect your hands from the weather
-
Rear stabiliser system
-
Fully independent suspension system
-
Long suspension travel
-
Front wheel travel 172mm
-
Rear wheel travel 194mm
LT-A400F
SUZUKI
Features
UTILITY / CHASSIS
-
Towing capacity up to 600kg
-
Trailer hitch mount has changed to a square-receiver type
-
Multi-function instrument panel with service reminder icon
-
Expansive storage compartments including a front waterproof storage and two rear storage compartments
-
Handlebar-mounted headlight
-
Flush-mount, LED-style taillight
-
A range of Genuine Suzuki Accessories
-
Front and rear carrier covers (M4 models only)
PERFORMANCE
-
Dual front hydraulic disc brakes with 190mm rotors
-
Sealed, oil-bath multidisc rear brake with 106mm discs
COMFORT
-
Power steering
-
Rear stabiliser system
-
Fully independent suspension system
-
Long suspension travel
-
Front wheel travel 172mm
-
Rear wheel travel 194mm
Features
-
High torque 4 stroke, 4 valve engine
-
Fuel-injection
-
CVT automatic transmission with Hi/Low and reverse
-
In-gear starting ability
-
2WD/4WD handlebar control
-
Large 16-litre fuel tank
-
Comfortable T-shaped seat
-
Torque-sensing limited slip front differential
-
High radius fenders and large front bumper
-
30W multi-reflector headlights
-
Full footboards provide ultimate protection
-
Downhill engine braking
-
Towing capacity up to 450kg
Specifications
Engine Type4-stroke, liquid-cooled, OHC
Engine Displacement (CC)493
Bore x Stroke 87.5 mm x 82.0 mm
Transmission CVT Automatic
Fuel System Fuel Injection
Starter System Electric
Overall Length (mm) 2190
Overall Width (mm) 1275
Overall Height (mm) 1285
Wheelbase (mm) 1285
Ground Clearance (mm) 260
Seat Height (mm) 920
Curb Mass (kg) 326
Suspension - Front Independent, double wishbone, coil spring, oil damped
Suspension - Rear Independent, double wishbone, coil spring, oil damped
Brakes - Front Disc brake, twin
Brakes - Rear Sealed oil-bathed multi-disc
Tyre - Front AT25 × 8-12**, tubeless
Tyre - Rear AT25 × 10-12**, tubeless
Fuel Tank Capacity (L)17.5
Specifications
Engine Type4-stroke, liquid-cooled, SOHC
Engine Displacement (CC)493
Bore x Stroke87.5 mm x 82.0 mm
TransmissionCVT Automatic
Fuel SystemFuel Injection
Starter SystemElectric
Overall Length (mm)2190
Overall Width (mm)1275
Overall Height (mm)1285
Wheelbase (mm)1285
Ground Clearance (mm)260
Seat Height (mm)920
Curb Mass (kg)317
Suspension - FrontIndependent, double wishbone, coil spring, oil damped
Suspension - RearIndependent, double wishbone, coil spring, oil damped
Brakes - FrontDisc brake, twin
Brakes - RearSealed oil-bathed multi-disc
Tyre - FrontAT25 × 8-12**, tubeless
Tyre - RearAT25 × 10-12**, tubeless
Fuel Tank Capacity (L)17.5
Specifications
Engine Type4-stroke, air-cooled with SACS, SOHC
Engine Displacement (CC) 376
Bore x Stroke 82.0 mm x 71.2 mm
Transmission Automatic
Fuel System Fuel Injection
Starter System Electric
Overall Length (mm) 2160
Overall Width (mm) 1200
Overall Height (mm) 1220
Wheelbase (mm) 1270
Ground Clearance (mm) 250
Seat Height (mm) 840
Curb Mass (kg) 292
Suspension - Front Independent, double wishbone, coil spring, oil damped
Suspension - Rear Swingarm type, coil spring, oil damped
Brakes - Front Disc, twin
Brakes - Rear Drum
Tyre - Front AT25 × 8-12**, tubeless
Tyre - Rear AT25 × 10-12**, tubeless
Fuel Tank Capacity (L)16
Specifications
Engine Type 4-stroke, air-cooled with SACS, SOHC
Engine Displacement (CC) 376
Bore x Stroke82.0 mm x 71.2 mm
Transmission 5-speed forward + 1 reverse
Fuel System Fuel Injection
Starter System Electric
Overall Length (mm) 2160
Overall Width (mm) 1200
Overall Height (mm) 1220
Wheelbase (mm) 1270
Ground Clearance (mm) 250
Seat Height (mm) 840
Curb Mass (kg) 286
Suspension - Front Independent, double wishbone, coil spring, oil damped
Suspension - Rear Swingarm type, coil spring, oil damped
Brakes - Front Disc, twin
Brakes - Rear Drum
Tyre - Front AT25 × 8-12**, tubeless
Tyre - Rear AT25 × 10-12**, tubeless
Fuel Tank Capacity (L) 16
Features
-
High torque 4 stroke, 4 valve engine
-
Fuel-injection
-
5 speed Manual transmission with Hi/Low and reverse
-
In-gear starting ability
-
2WD/4WD handlebar control
-
Large 16 litre fuel tank
-
Comfortable T-shaped seat
-
Torque sensing limited slip front differential
-
High radius fenders and large front bumper
-
30W multi reflector headlights
-
Full footboards provide ultimate protection
-
Downhill engine braking
-
Towing capacity up to 450kg
